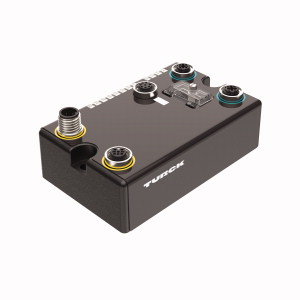

TURCK BLCEN-1M12MT-1CNT-ENC Block-IO
BL compact™ multiprotocol fieldbus station for Industrial Ethernet, Digital Counter/Encoder Interface.
Overview
Features
- On-machine Compact fieldbus I/O block
- EtherNet/IP™
- Modbus® TCP
- or PROFINET slave
- Integrated Ethernet Switch
- 10 Mbps / 100 Mbps supported
- Two 4-pole M12
- D-coded
- connectors for fieldbus connection
- 2 rotary switches for node address
- IP67
- IP69K
- M12 I/O connectors
- LEDs indicating status and diagnostics
- Electronics galvanically separated from the field level via optocouplers
- Detection of standard counting signals
- 5 VDC differential
- 5…24 VDC single ended
- 1 digital PNP input
- 24 VDC
- 1 digital PNP output
- 24 VDC
- 0.5A
Description
BL compact™ multiprotocol fieldbus station for Industrial Ethernet, Digital Counter/Encoder Interface, On-machine Compact fieldbus I/O block, EtherNet/IP™, Modbus® TCP, or PROFINET slave, Integrated Ethernet Switch, 10 Mbps / 100 Mbps supported, Two 4-pole M12, D-coded, connectors for fieldbus connection, 2 rotary switches for node address, IP67, IP69K, M12 I/O connectors, LEDs indicating status and diagnostics, Electronics galvanically separated from the field level via optocouplers, Detection of standard counting signals, 5 VDC differential, 5…24 VDC single ended, 1 digital PNP input, 24 VDC, 1 digital PNP output, 24 VDC, 0.5A
