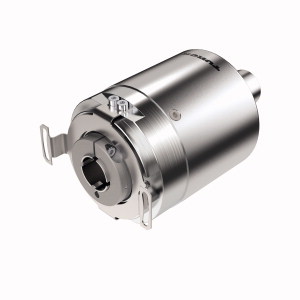

TURCK 200010806 / RM-106CA3E-9N43B-B3M12 Rotary Position Sensors

Absolute Rotary Encoder - Multiturn, Industrial Line.

$1,740.70
Part Numbers
  • RM-106CA3E-9N43B-B3M12
  • 200010806
Manufactured
Availability
  • Usually ships in 0-7 business days
Product Specs

Features

  • Flange with slotted flex mount
  • Ø 63mm
  • Hollow shaft
  • Ø ½ in (12.7mm)
  • Optical measuring principle
  • Shaft material
  • stainless steel
  • Protection class IP65 on the shaft side
  • ‐40 ... +80°C
  • max. 9000 rev / min
  • 10…30 VDC
  • Ethernet/IP
  • M12 × 3 male connector
  • 4-pin
  • Singleturn resolution scalable to 19 bit (default 18 bit)
  • Multiturn resolution scalable to 24 bit (default 12 bit)
Absolute Rotary Encoder - Multiturn, Industrial Line, Operating voltage 10…30 VDC, Flange with slotted flex mount, Ø 63mm, Hollow shaft, Ø ½ in (12.7mm), Optical measuring principle, Shaft material, stainless steel, Protection class IP65 on the shaft side, ‐40 ... +80°C, max. 9000 rev / min, , 10…30 VDC, Ethernet/IP, M12 × 3 male connector, 4-pin, Singleturn resolution scalable to 19 bit (default 18 bit), Multiturn resolution scalable to 24 bit (default 12 bit)
