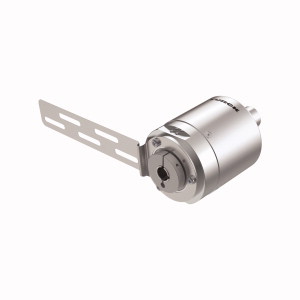

TURCK 200010801 / RM-106B15SF-9N43B-B3M12 Rotary Position Sensors

Absolute Rotary Encoder - Multiturn, Industrial Line.

$1,804.50
Part Numbers
  • RM-106B15SF-9N43B-B3M12
  • 200010801
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Flange with long flexible tether arm
  • Ø 52mm
  • Hollow shaft
  • Ø 15mm
  • Optical measuring principle
  • Shaft material
  • stainless steel
  • IP67 rated on shaft side
  • -40…+80 °C
  • Max. 9000 rpm
  • 10…30 VDC
  • Ethernet/IP
  • M12 × 3 male connector
  • 4-pin
  • Singleturn resolution scalable to 19 bit (default 18 bit)
  • Multiturn resolution scalable to 24 bit (default 12 bit)
Absolute Rotary Encoder - Multiturn, Industrial Line, Operating voltage 10…30 VDC, Flange with long flexible tether arm, Ø 52mm, Hollow shaft, Ø 15mm, Optical measuring principle, Shaft material, stainless steel, IP67 rated on shaft side, -40…+80 °C, Max. 9000 rpm, 10…30 VDC, Ethernet/IP, M12 × 3 male connector, 4-pin, Singleturn resolution scalable to 19 bit (default 18 bit), Multiturn resolution scalable to 24 bit (default 12 bit)
