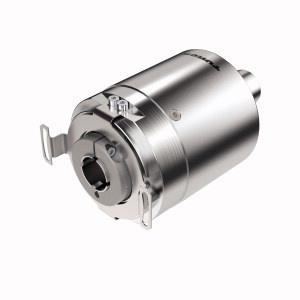

TURCK 200010787 / RS-108BA1E-9N19B-B3M12 Rotary Position Sensors

Absolute Rotary Encoder - Singleturn, Industrial Line.

$1,616.60
Part Numbers
  • RS-108BA1E-9N19B-B3M12
  • 200010787
Manufactured
Availability
  • Usually ships in 10-16 weeks
Product Specs

Features

  • Flange with slotted flex mount
  • Ø 63mm
  • Hollow shaft
  • Ø 3/8 in. (9.525mm)
  • Optical measuring principle
  • Shaft material
  • stainless steel
  • IP67 rated on shaft side
  • -40…+80 °C
  • Max. 9000 rpm
  • 10…30 VDC
  • Ethernet/IP
  • M12 × 3 male connector
  • 4-pin
  • Singleturn resolution scalable up to 19 bit
  • default 18 bit
Absolute Rotary Encoder - Singleturn, Industrial Line, Operating voltage 10…30 VDC, Flange with slotted flex mount, Ø 63mm, Hollow shaft, Ø 3/8 in. (9.525mm), Optical measuring principle, Shaft material, stainless steel, IP67 rated on shaft side, -40…+80 °C, Max. 9000 rpm, 10…30 VDC, Ethernet/IP, M12 × 3 male connector, 4-pin, Singleturn resolution scalable up to 19 bit, default 18 bit
