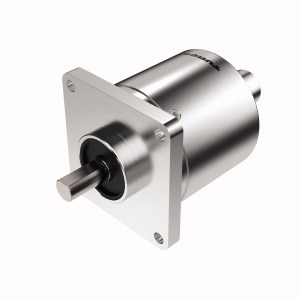

TURCK 200010776 / RM-105TA1R-9N43B-B3M12 Rotary Position Sensors

Absolute Rotary Encoder - Multiturn, Industrial Line.

$1,676.20
Part Numbers
  • RM-105TA1R-9N43B-B3M12
  • 200010776
Manufactured
Availability
  • Usually ships in 0-7 business days
Product Specs

Features

  • Square flange
  • Ø 63.5 mm
  • Solid shaft
  • Ø 3/8" x 7/8"
  • Optical measuring principle
  • Shaft material
  • stainless steel
  • Protection class IP65 on the shaft side
  • ‐40 ... +80°C
  • max. 9000 rev / min
  • 10…30 VDC
  • Ethernet/IP
  • M12 × 3 male connector
  • 4-pin
  • Singleturn resolution scalable to 19 bit (default 18 bit)
  • Multiturn resolution scalable to 24 bit (default 12 bit)
Absolute Rotary Encoder - Multiturn, Industrial Line, Operating voltage 10…30 VDC, Square flange, Ø 63.5 mm, Solid shaft, Ø 3/8" x 7/8", Optical measuring principle, Shaft material, stainless steel, , Protection class IP65 on the shaft side, ‐40 ... +80°C, max. 9000 rev / min, , 10…30 VDC, Ethernet/IP, M12 × 3 male connector, 4-pin, Singleturn resolution scalable to 19 bit (default 18 bit), Multiturn resolution scalable to 24 bit (default 12 bit)
