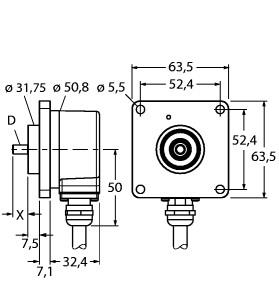

TURCK 200007009 / RI-10SA1R-2K1024-10MIL/N29/N40 Rotary Position Sensors
Incremental Shaft Encoder, Industrial Line.
Overview
Features
- Square flange
- Ø 63.5 mm
- Solid shaft
- Ø 3/8” x 5/8”
- Optical measuring principle
- Shaft material
- stainless steel
- Protection class IP67 on housing and shaft side
- ‐40…+85 °C
- Max. 6000 rpm (continuous operation 3000 rpm)
- 5…30 VDC
- Male connector MIL
- 10-pole
- Push-pull 7272
- with inverted signals
- Pulse frequency max. 300 kHz
- 1024 pulses per revolution
Description
Incremental Shaft Encoder, Industrial Line, Operating voltage 5…30 VDC, Resolution incremental 1024 ppr, Square flange, Ø 63.5 mm, Solid shaft, Ø 3/8" x 5/8", Optical measuring principle, Shaft material, stainless steel, , Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 5…30 VDC, Male connector MIL, 10-pole, Push-pull 7272, with inverted signals, Pulse frequency max. 300 kHz, 1024 pulses per revolution
