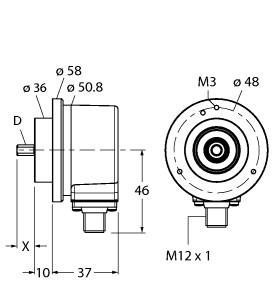

TURCK 200006174 / RI-10TA1C-4A4000-H1181 Rotary Position Sensors

Incremental Encoder, Industrial Line.

$450.00
Part Numbers
  • RI-10TA1C-4A4000-H1181
  • 200006174
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

  • Clamping flange
  • Ø 58 mm
  • Solid shaft
  • Ø 3/8“ x 5/8”
  • Optical measuring principle
  • Shaft
  • stainless steel
  • Protection class IP65 on shaft side
  • -40…+85 °C
  • Max. 12000 rpm (continuous operation 6000)
  • 5 VDC
  • Male connector
  • M12 x 1
  • 8-pole
  • RS422 with inverted signals
  • Pulse frequency max. 300 kHz
  • 4000 pulses per revolution
Incremental Encoder, Industrial Line, Resolution incremental 4000 ppr, Clamping flange, Ø 58 mm, Solid shaft, Ø 3/8" x 5/8", Optical measuring principle, Shaft, stainless steel, , Protection class IP65 on shaft side, -40…+85 °C, Max. 12000 rpm (continuous operation 6000), 5 VDC, Male connector, M12 x 1, 8-pole, RS422 with inverted signals, Pulse frequency max. 300 kHz, 4000 pulses per revolution
