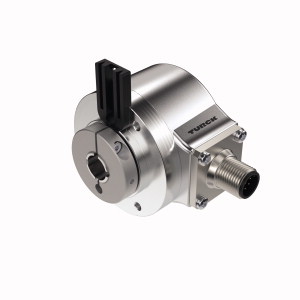

TURCK 200005715 / RI-12I10E-2B600-C10M Rotary Position Sensors

Incremental Hollow Shaft Encoder, Industrial Line.

$450.00
Part Numbers
  • RI-12I10E-2B600-C10M
  • 200005715
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

  • Incremental Hollow Shaft Encoder
  • Protection class IP65 on shaft side
  • -40…+85 °C
  • Max. 12000 rpm (continuous operation 6000)
  • 10…30 VDC
  • Cable connection
  • 8-pole
  • Push-pull
  • with inverted signals
  • Pulse frequency max. 300 kHz
  • 600 pulses per revolution
Incremental Hollow Shaft Encoder, Industrial Line, Operating voltage 10…30 VDC, Resolution incremental 600 ppr, Incremental Hollow Shaft Encoder, Protection class IP65 on shaft side, -40…+85 °C, Max. 12000 rpm (continuous operation 6000), 10…30 VDC, Cable connection, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 600 pulses per revolution
