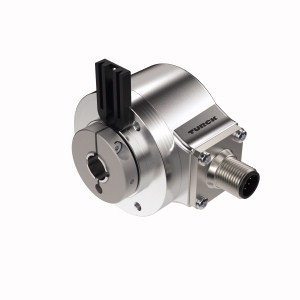

TURCK 200005307 / RI-12IA3E1-2K1000-H1181 Rotary Position Sensors

Incremental Hollow Shaft Encoder, Industrial Line.

$450.00
Part Numbers
  • RI-12IA3E1-2K1000-H1181
  • 200005307
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

  • Incremental Hollow Shaft Encoder
  • Protection class IP65 on shaft side
  • -40…+85 °C
  • Max. 12000 rpm (continuous operation 6000)
  • 5…30 VDC
  • Male connector
  • M12 x 1
  • 8-pole
  • Push-pull
  • with inverted signals
  • Pulse frequency max. 300 kHz
  • 1000 pulses per revolution
Incremental Hollow Shaft Encoder, Industrial Line, Operating voltage 5…30 VDC, Resolution incremental 1000 ppr, Incremental Hollow Shaft Encoder, Protection class IP65 on shaft side, -40…+85 °C, Max. 12000 rpm (continuous operation 6000), 5…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 1000 pulses per revolution
