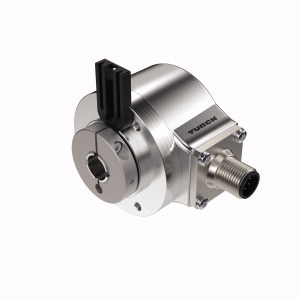

TURCK 200005186 / RI-12HA1S1-CA100-H1181 Rotary Position Sensors

Incremental Hollow Shaft Encoder, Industrial Line.

$450.00
Part Numbers
  • RI-12HA1S1-CA100-H1181
  • 200005186
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

  • Incremental Hollow Shaft Encoder
  • Protection class IP67 on housing and shaft side
  • ‐40…+85 °C
  • Max. 6000 rpm (continuous operation 3000 rpm)
  • 5…30 VDC
  • Male connector
  • M12 x 1
  • 8-pole
  • Open Collector with inverted signals
  • Pulse frequency max. 300 kHz
  • 100 pulses per revolution
Incremental Hollow Shaft Encoder, Industrial Line, Operating voltage 5…30 VDC, Resolution incremental 100 ppr, Incremental Hollow Shaft Encoder, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 5…30 VDC, Male connector, M12 x 1, 8-pole, Open Collector with inverted signals, Pulse frequency max. 300 kHz, 100 pulses per revolution
