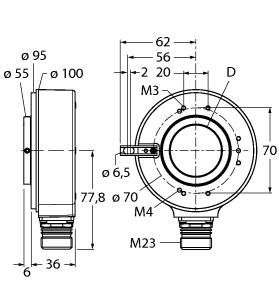

TURCK 200003988 / RI-43H30S4-4A5000-12M23 Rotary Position Sensors

Incremental Encoder, Industrial Line.

$725.00
Part Numbers
  • RI-43H30S4-4A5000-12M23
  • 200003988
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

  • Receptacle with spring element
  • Ø 100 mm
  • Hollow shaft
  • Ø 25 mm
  • Optical measuring principle
  • Shaft material: stainless steel
  • Protection class IP65 on shaft side
  • -40…+70 °C
  • Max. 6000 rpm
  • 5 VDC
  • Male connector
  • M23 x 1
  • 12-pole
  • RS422 with inverted signals
  • Pulse frequency max. 300 kHz
  • 5000 pulses per revolution
Incremental Encoder, Industrial Line, Operating voltage 5…0.0 VDC, Resolution incremental 5000 ppr, Receptacle with spring element, Ø 100 mm, Hollow shaft, Ø 25 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP65 on shaft side, -40…+70 °C, Max. 6000 rpm, 5 VDC, Male connector, M23 x 1, 12-pole, RS422 with inverted signals, Pulse frequency max. 300 kHz, 5000 pulses per revolution
