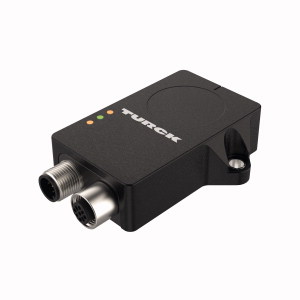

TURCK 100046440 / B2NF85H-QR20-CNX4-2H1150 Inclination Sensors

Dynamic Inclinometer, CANopen.

$546.30
Part Numbers
  • B2NF85H-QR20-CNX4-2H1150
  • 100046440
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

  • Rectangular
  • plastic
  • Ultem
  • Status displayed via LED
  • Angle detection over two axes with ±85° measuring range
  • Recording of the rotation rate over three axes with a measuring range of ±1000°/s
  • Recording of the acceleration over three axes with a measuring range of ±4 g
  • Temperature detection from -40…85 °C
  • High protection class IP68/IP69K
  • Increased interference immunity 100 V/m acc. to ISO 11452-2
  • 200 mA acc. to ISO 11452-4
  • Protection against conducted interference acc. to ISO 7637-2 severity degree Level 4 and load dump acc. to ISO 16750-2 for 12-V/24-V systems
  • Withstands rapid temperature change
  • 8…36 VDC
  • Connector
  • M12 × 1
  • 5-pin
  • CAN in
  • CAN out
  • Acc. to CiA 301
  • CiA 305
  • CiA 410
Dynamic Inclinometer, CANopen, Operating voltage 8…36 VDC, Rectangular, plastic, Ultem, Status displayed via LED, Angle detection over two axes with ±85° measuring range, Recording of the rotation rate over three axes with a measuring range of ±1000°/s, Recording of the acceleration over three axes with a measuring range of ±4 g, Temperature detection from -40…85 °C, High protection class IP68/IP69K, Increased interference immunity 100 V/m acc. to ISO 11452-2, 200 mA acc. to ISO 11452-4, Protection against conducted interference acc. to ISO 7637-2 severity degree Level 4 and load dump acc. to ISO 16750-2 for 12-V/24-V systems, Withstands rapid temperature change, 8…36 VDC, Connector, M12 × 1, 5-pin, CAN in, CAN out, Acc. to CiA 301, CiA 305, CiA 410
