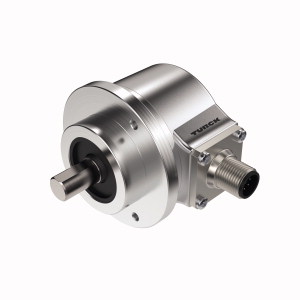

TURCK 100046311 / RI-10SA1C-4B1024-H1181 Encoder Sensors

Incremental Shaft Encoder, Industrial Line.

$450.00
Part Numbers
  • RI-10SA1C-4B1024-H1181
  • 100046311
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

  • Clamping flange
  • Ø 58 mm
  • Solid shaft
  • Ø 3/8” x 5/8”
  • Optical measuring principle
  • Shaft material
  • stainless steel
  • Protection class IP67 on housing and shaft side
  • ‐40…+85 °C
  • Max. 6000 rpm (continuous operation 3000 rpm)
  • 5…30 VDC
  • Male connector
  • M12 x 1
  • 8-pole
  • RS422 with inverted signals
  • Pulse frequency max. 300 kHz
  • 1024 pulses per revolution
Incremental Shaft Encoder, Industrial Line, Operating voltage 5…30 VDC, Resolution incremental 1024 ppr, Clamping flange, Ø 58 mm, Solid shaft, Ø 3/8" x 5/8", Optical measuring principle, Shaft material, stainless steel, , Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 5…30 VDC, Male connector, M12 x 1, 8-pole, RS422 with inverted signals, Pulse frequency max. 300 kHz, 1024 pulses per revolution
