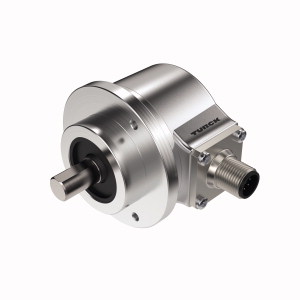

TURCK 100045586 / RI-10SA1C-4B64-H1181 Encoder Sensors

Incremental Shaft Encoder.

$450.00
Part Numbers
  • RI-10SA1C-4B64-H1181
  • 100045586
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

  • Clamping flange
  • Ø 58 mm
  • Solid shaft
  • Ø 3/8” x 5/8”
  • Optical measuring principle
  • Shaft material
  • stainless steel
  • Protection class IP67 on housing and shaft side
  • ‐40…+85 °C
  • Max. 6000 rpm (continuous operation 3000 rpm)
  • 5…30 VDC
  • Male connector
  • M12 x 1
  • 8-pole
  • RS422 with inverted signals
  • Pulse frequency max. 300 kHz
  • 64 pulses
Incremental Shaft Encoder
