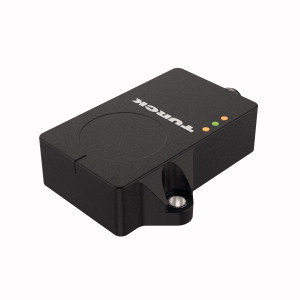

TURCK 100031519 / B2NF85H-QR20-2LI2X3-H1151 Inclination Sensors

Dynamic Inclinometer.

$565.30
Part Numbers
  • B2NF85H-QR20-2LI2X3-H1151
  • 100031519
Manufactured
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • Rectangular
  • plastic
  • Ultem
  • Status displayed via LED
  • Angle detection along two axes with ±85 ° measuring range
  • High protection class IP68/IP69K
  • Protected against salt spray and rapid temperature change
  • 15…30 VDC
  • M12 × 1 male connector
  • 5-pin
  • Analog output 4…20 mA
  • The center point of the measuring range can be adjusted using teach adaptor TX1-Q20L60
  • Individual parameterization possible with USB-2-IOL-0002
Dynamic Inclinometer, Operating voltage 15…30 VDC, Rectangular, plastic, Ultem, Status displayed via LED, Angle detection along two axes with ±85 ° measuring range, High protection class IP68/IP69K, Protected against salt spray and rapid temperature change, 15…30 VDC, M12 × 1 male connector, 5-pin, Analog output 4…20 mA, The center point of the measuring range can be adjusted using teach adaptor TX1-Q20L60, Individual parameterization possible with USB-2-IOL-0002
