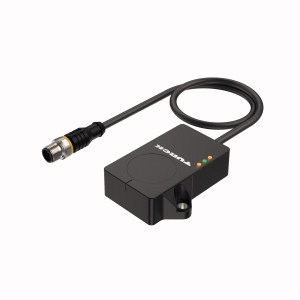

TURCK 100029966 / CMVT-QR20-IOLX3-0.3-RS4 Condition Monitoring Sensors
Vibration & Temperature Sensor, For Condition Monitoring with IO-Link.
Overview
Features
- Rectangular
- plastic
- Ultem
- Status displayed via LED
- Acceleration and speed output RMS or peak to peak of the vibration
- Acceleration measuring range ±16 g
- Detection over 3 axes
- Temperature measuring range -40 °C to +85 °C
- High protection class IP68/IP69K
- 18…30 VDC
- communication via IO-Link
- 10…30 VDC
- SIO mode PNP/NPN switching outputs
- Cable with male connector
- M12 × 1
- 4-pin
Description
Vibration & Temperature Sensor, For Condition Monitoring with IO-Link, Operating voltage 18…30 VDC, Cable length (L) 0.3 m, Rectangular, plastic, Ultem, Status displayed via LED, Acceleration and speed output RMS or peak to peak of the vibration, Acceleration measuring range ±16 g, Detection over 3 axes, Temperature measuring range -40 °C to +85 °C, High protection class IP68/IP69K, 18…30 VDC, communication via IO-Link, 10…30 VDC, SIO mode PNP/NPN switching outputs, Cable with male connector, M12 × 1, 4-pin
