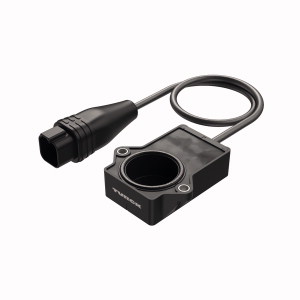

TURCK 100027543 / RI360P1-QR20-9F16B-0.3-DT04-6PMB Encoder Sensors
Miniature encoder, With J1939 Output, Premium Line.
Overview
Features
- Rectangular
- plastic
- Compact and robust housing
- Versatile mounting possibilities
- Positioning element P1-RI-QR20 included in delivery
- For vehicle electrical systems
- 12 V and 24 V
- Increased interference immunity 100 V/m following the e1 type approval
- Protection against conducted interference acc. to DIN ISO 7637-2 (SAE J 113-11)
- Extended temperature range
- High protection class IP68/IP69K
- Protection against salt spray and rapid temperature change
- Measuring range displayed via LED
- Immune to electromagnetic interference
- Resolution: 0.09°
- 8…30 VDC
- J1939
- Male connector
- Deutsch DT04-6PMB
Description
Miniature encoder, With J1939 Output, Premium Line, Operating voltage 8…30 VDC, Cable length (L) 0.4 m, Rectangular, plastic, Compact and robust housing, Versatile mounting possibilities, Positioning element P1-RI-QR20 included in delivery, For vehicle electrical systems, 12 V and 24 V, Increased interference immunity 100 V/m following the e1 type approval, Protection against conducted interference acc. to DIN ISO 7637-2 (SAE J 113-11), Extended temperature range, High protection class IP68/IP69K, Protection against salt spray and rapid temperature change, Measuring range displayed via LED, Immune to electromagnetic interference, Resolution: 0.09°, 8…30 VDC, J1939, Male connector, Deutsch DT04-6PMB
