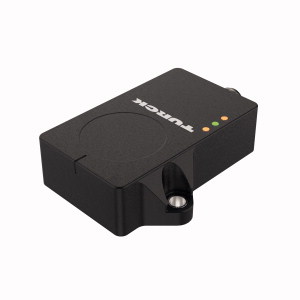

TURCK 100026931 / B1NF360V-QR20-2UPN6X3-H1141 Inclination Sensors

Dynamic Inclinometer.

$565.30
Part Numbers
  • B1NF360V-QR20-2UPN6X3-H1141
  • 100026931
Manufactured
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • Rectangular
  • plastic
  • Ultem
  • Status displayed via LED
  • Angle detection via one axis with 360 ° measuring range and two freely configurable switching outputs (PNP/NPN)
  • High protection class IP68/IP69K
  • Protected against salt spray and rapid temperature change
  • 10…30 V DC
  • Male connector
  • M12 × 1
  • 4-pin
  • Parameterization via IO-Link with USB-2-IOL-0002
Dynamic Inclinometer, , Rectangular, plastic, Ultem, Status displayed via LED, Angle detection via one axis with 360 ° measuring range and two freely configurable switching outputs (PNP/NPN), High protection class IP68/IP69K, Protected against salt spray and rapid temperature change, 10…30 V DC, Male connector, M12 × 1, 4-pin, Parameterization via IO-Link with USB-2-IOL-0002
