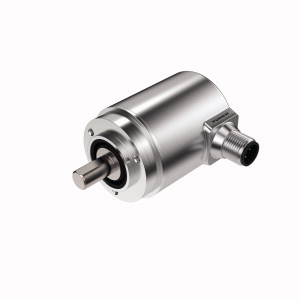

TURCK 100023540 / REM-101S6C-9F32B-H1151 Encoder Sensors

Absolute Rotary Encoder - Multiturn, Industrial Line.

$678.80
Part Numbers
  • REM-101S6C-9F32B-H1151
  • 100023540
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Clamping flange
  • Ø 36 mm
  • Solid shaft
  • Ø 6 mm × 12.5 mm
  • Magnetic measuring principle
  • Shaft material: stainless steel
  • Protection class IP67 on housing and shaft side
  • ‐40…+80 °C
  • Max. 4000 rpm (continuous operation 2000 rpm)
  • 10-30 VDC
  • SAE J1939
  • M12 connection
  • 5-pin
  • Singleturn resolution 14 bit scalable
  • default 14 bit
  • Multiturn resolution scalable up to 29 bit over total resolution
  • default 18 bit
  • Total resolution 32 bit scalable
  • default: 32 bit
Absolute Rotary Encoder - Multiturn, Industrial Line, Clamping flange, Ø 36 mm, Solid shaft, Ø 6 mm × 12.5 mm, Magnetic measuring principle, Shaft material: stainless steel, Protection class IP67 on housing and shaft side, ‐40…+80 °C, Max. 4000 rpm (continuous operation 2000 rpm), 10-30 VDC, SAE J1939, M12 connection, 5-pin, Singleturn resolution 14 bit scalable, default 14 bit, Multiturn resolution scalable up to 29 bit over total resolution, default 18 bit, Total resolution 32 bit scalable, default: 32 bit
