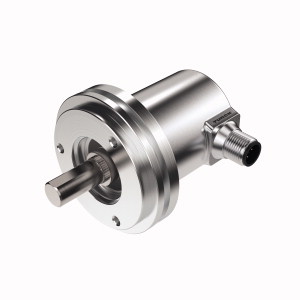

TURCK 100021184 / REM-E-195T10S-IOL32B-H1141 Encoder Sensors

Absolute Rotary Encoder - Multiturn, IO-Link, Efficiency Line.

$711.00
Part Numbers
  • REM-E-195T10S-IOL32B-H1141
  • 100021184
Manufactured
Availability
  • Usually ships in 3-4 weeks
Product Specs

Features

  • Ø 58 mm servo flange
  • Solid shaft
  • Ø 10mm x 20mm
  • Optical measuring principle
  • Shaft material
  • stainless steel
  • Protection class IP64 on housing and shaft side
  • ‐20…+70 °C
  • Max. 4000 rpm (continuous operation 2000 rpm)
  • Energy harvesting technology
  • 18….30 VDC
  • M12 x 1 male connection
  • 4-pin
  • Singleturn resolution 14 bit scalable
  • default 14 bit
  • Multiturn resolution scalable only to 18 bits over total resolution
  • default 18 bits
  • Total resolution 32 bit scalable
  • default 32 bit
Absolute Rotary Encoder - Multiturn, IO-Link, Efficiency Line, Ø 58 mm servo flange, Solid shaft, Ø 10mm x 20mm, Optical measuring principle, Shaft material, stainless steel, , Protection class IP64 on housing and shaft side, ‐20…+70 °C, Max. 4000 rpm (continuous operation 2000 rpm), Energy harvesting technology, 18….30 VDC, M12 x 1 male connection, 4-pin, Singleturn resolution 14 bit scalable, default 14 bit, Multiturn resolution scalable only to 18 bits over total resolution, default 18 bits, Total resolution 32 bit scalable, default 32 bit
