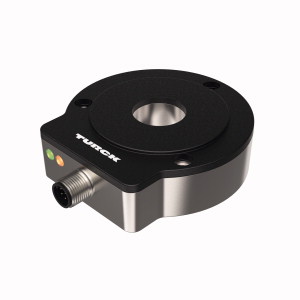

TURCK 100020402 / RI360P0-EQR24M0-2500X2-H1181 Rotary Position Sensors
Contactless Encoder with Stainless Steel Housing, Incremental: 2500 ppr, Premium Line.
Overview
Features
- Compact
- rugged housing
- Active face
- plastic PA12-GF30
- Housing
- stainless steel V4A (1.4404)
- Status displayed via LED
- Immune to electromagnetic interference
- Position of z-track can be set via Easy-Teach
- Burst function
- absolute angular position output incrementally via Easy-Teach pulse
- 10…30 VDC
- Male M12 x 1
- 8-pin
- Push-pull A
- B
- Z
- A (inverse)
- B (inverse)
Description
Contactless Encoder with Stainless Steel Housing, Incremental: 2500 ppr, Premium Line, Operating voltage 10…30 VDC, Resolution incremental 2500 ppr, Compact, rugged housing, Active face, plastic PA12-GF30, Housing, stainless steel V4A (1.4404), Status displayed via LED, Immune to electromagnetic interference, Position of z-track can be set via Easy-Teach, Burst function, absolute angular position output incrementally via Easy-Teach pulse, 10…30 VDC, Male M12 x 1, 8-pin, Push-pull A, B, Z, A (inverse), B (inverse)
