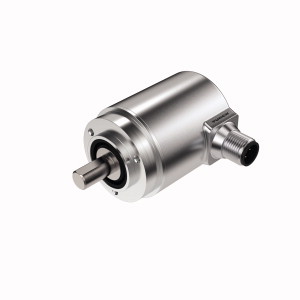

TURCK 100020141 / RES-192S6C-IOL14B-H1141 Encoder Sensors

Absolute Rotary Encoder - Single-Turn, IO-Link, Industrial Line.

$531.70
Part Numbers
  • RES-192S6C-IOL14B-H1141
  • 100020141
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Clamping flange
  • Ø 36 mm
  • Solid shaft
  • Ø 6 mm × 12.5 mm
  • Magnetic measuring principle
  • Shaft material: stainless steel
  • IP67 rated on the shaft side
  • ‐40…+85 °C
  • Max. 4000 rev/min
  • 10-30 VDC
  • SSI (Binary Code)
  • M12 connection
  • 8-pin
  • 360° resolved in 14 bit (16384 positions)
Absolute Rotary Encoder - Single-Turn, IO-Link, Industrial Line, Clamping flange, Ø 36 mm, Solid shaft, Ø 6 mm × 12.5 mm, Magnetic measuring principle, Shaft material: stainless steel, IP67 rated on the shaft side, ‐40…+85 °C, Max. 4000 rev/min, , 10-30 VDC, SSI (Binary Code), M12 connection, 8-pin, , 360° resolved in 14 bit (16384 positions)
