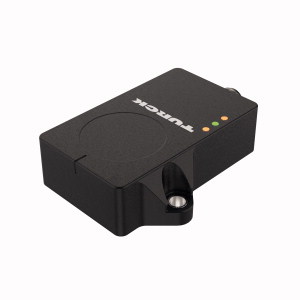

TURCK 100016543 / CMVT-QR20-IOLX3-H1141 Condition Monitoring Sensors
Vibration & Temperature Sensor, For Condition Monitoring with IO-Link.
Overview
Features
- Rectangular
- plastic
- Ultem
- Status displayed via LED
- Acceleration and speed output RMS or peak to peak of the vibration
- Acceleration measuring range ±16 g
- Detection over 3 axes
- Temperature measuring range -40 °C to +85 °C
- High protection class IP68/IP69K
- 18…30 VDC
- communication via IO-Link
- 10…30 VDC
- SIO mode PNP/NPN switching outputs
- M12 × 1 male connector
- 4-pin
Description
Vibration & Temperature Sensor, For Condition Monitoring with IO-Link, Operating voltage 18…30 VDC, Rectangular, plastic, Ultem, Status displayed via LED, Acceleration and speed output RMS or peak to peak of the vibration, Acceleration measuring range ±16 g, Detection over 3 axes, Temperature measuring range -40 °C to +85 °C, High protection class IP68/IP69K, 18…30 VDC, communication via IO-Link, 10…30 VDC, SIO mode PNP/NPN switching outputs, M12 × 1 male connector, 4-pin
