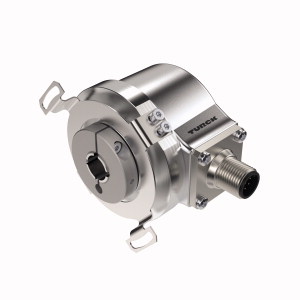

TURCK 100011756 / REI-E-114I8E-2B1024-H1181 Encoder Sensors

Incremental Encoder, Efficiency Line.

$360.00
Part Numbers
  • REI-E-114I8E-2B1024-H1181
  • 100011756
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

  • Flange with stator coupling

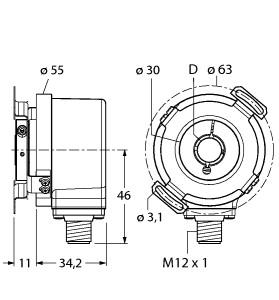

  • Ø 63 mm
  • Hollow shaft
  • Ø 8mm
  • Optical measuring principle
  • Shaft material: stainless steel
  • Protection class IP64 on housing and shaft side
  • ‐20…+70 °C
  • Max. 4500 rpm (continuous operation 3000 rpm)
  • 10…30 VDC
  • Male connector
  • M12 x 1
  • 8-pole
  • Push-pull
  • with inverted signals
  • Pulse frequency max. 300 kHz
  • 1024 pulses per revolution
Incremental Encoder, Efficiency Line, Resolution, incremental 1024 ppr, Flange with stator coupling, Ø 63 mm, Hollow shaft, Ø 8mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP64 on housing and shaft side, ‐20…+70 °C, Max. 4500 rpm (continuous operation 3000 rpm), 10…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 1024 pulses per revolution
