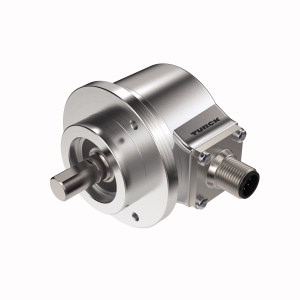

TURCK 100011578 / REI-E-113T12C-2B2500-H1181 Encoder Sensors

Incremental Encoder, Efficiency Line.

$360.00
Part Numbers
  • REI-E-113T12C-2B2500-H1181
  • 100011578
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

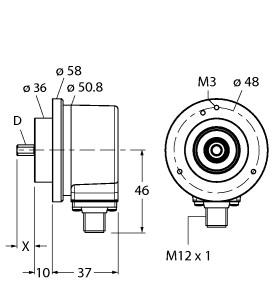

  • Clamping flange
  • Ø 58 mm
  • Solid shaft
  • Ø 12 mm × 20 mm
  • Optical measuring principle
  • Shaft material: stainless steel
  • Protection class IP64 on housing and shaft side
  • ‐20…+70 °C
  • Max. 4500 rpm (continuous operation 3000 rpm)
  • 10…30 VDC
  • Male connector
  • M12 x 1
  • 8-pole
  • Push-pull
  • with inverted signals
  • Pulse frequency max. 300 kHz
  • 2500 pulses per revolution
Incremental Encoder, Efficiency Line, Resolution, incremental 2500 ppr, Clamping flange, Ø 58 mm, Solid shaft, Ø 12 mm × 20 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP64 on housing and shaft side, ‐20…+70 °C, Max. 4500 rpm (continuous operation 3000 rpm), 10…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 2500 pulses per revolution
