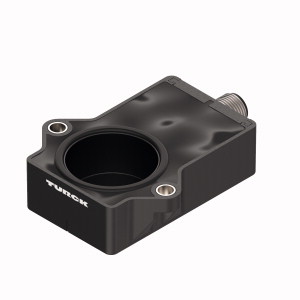

TURCK 100004589 / RI40P1-QR20-LI2X2-H1141 Encoder Sensors

Miniature Encoder, With Analog Output, Premium Line.

$190.60
Part Numbers
  • RI40P1-QR20-LI2X2-H1141
  • 100004589
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Rectangular
  • plastic
  • Compact and robust housing
  • Versatile mounting possibilities
  • Positioning element P1-RI-QR20 included in delivery
  • High protection class IP68/IP69K
  • Protection against salt spray
  • Measuring range displayed via LED
  • Immune to electromagnetic interference
  • 0.09° resolution
  • 3‐wire
  • 15…30 VDC
  • Analog output 4…20 mA
  • Output 22 mA (typ.) where there is no RLC coupling
  • M12 × 1 male connector
  • 4-pin
Miniature Encoder, With Analog Output, Premium Line, Rectangular, plastic, Compact and robust housing, Versatile mounting possibilities, Positioning element P1-RI-QR20 included in delivery, High protection class IP68/IP69K, Protection against salt spray, Measuring range displayed via LED, Immune to electromagnetic interference, 0.09° resolution, 3‐wire, 15…30 VDC, Analog output 4…20 mA, Output 22 mA (typ.) where there is no RLC coupling, M12 × 1 male connector, 4-pin
