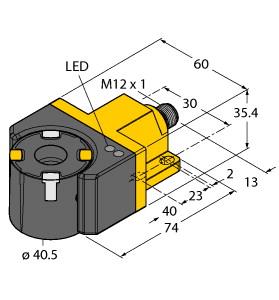

TURCK 100002205 / RI360P4-DSU35-ELIU5X2-H1151 Encoder Sensors

Inductive Angle Sensor, With Analog Output, Premium Line.

$514.10
Part Numbers
  • RI360P4-DSU35-ELIU5X2-H1151
  • 100002205
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Rectangular
  • DSU35 design
  • Plastic
  • PP-GF30-VO
  • Detection of angular range from 0° to 360°
  • Positioning element P4-Ri-DSU35 included in delivery
  • Measuring range displayed via LED
  • Programmable measuring range
  • Immune to electromagnetic interference
  • Resolution
  • 12-bit
  • 15…30 VDC
  • 0…10 V and 4…20 mA
  • Male M12 x 1
  • 5-pin
Inductive Angle Sensor, With Analog Output, Premium Line, Non-flush, Rectangular, DSU35 design, Plastic, PP-GF30-VO, Detection of angular range from 0° to 360°, Positioning element P4-Ri-DSU35 included in delivery, Measuring range displayed via LED, Programmable measuring range, Immune to electromagnetic interference, Resolution, 12-bit, 15…30 VDC, 0…10 V and 4…20 mA, Male M12 x 1, 5-pin
