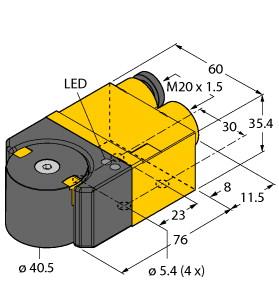

TURCK 1593015 / RI360P1-DSU35TC-ELI-EXI Encoder Sensors

Inductive Angle Sensor, With Analog Output, Premium Line.

$512.90
Part Numbers
  • RI360P1-DSU35TC-ELI-EXI
  • 1593015
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Rectangular
  • housing DSU35
  • Plastic
  • PP-GF30-VO
  • Detecting angular positions of 0° to 360°
  • P1-Ri-DSU35 positioning element included in delivery
  • Measuring range programmable via switch in the Terminal chamber
  • Immune to electromagnetic interference
  • Resolution
  • 12-bit
  • 2‐wire
  • 14…30 VDC
  • Analog output
  • 4 … 20 mA
  • Terminal chamber
  • ATEX category II 2 G
  • Ex Zone 1
  • ATEX category II 2 D
  • Ex Zone 21
Inductive Angle Sensor, With Analog Output, Premium Line, Non-flush, Rectangular, housing DSU35, Plastic, PP-GF30-VO, Detecting angular positions of 0° to 360°, P1-Ri-DSU35 positioning element included in delivery, Measuring range programmable via switch in the Terminal chamber, Immune to electromagnetic interference, Resolution, 12-bit, 2‐wire, 14…30 VDC, Analog output, 4 … 20 mA, Terminal chamber, ATEX category II 2 G, Ex Zone 1, ATEX category II 2 D, Ex Zone 21
