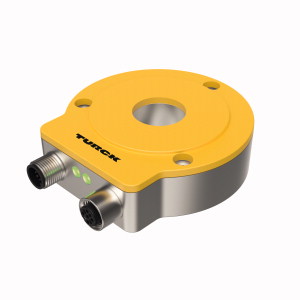

TURCK 1590914 / RI360P0-QR24M0-CNX4-2H1150 Encoder Sensors

Contactless Encoder, CANopen, Premium Line.

$585.60
Part Numbers
  • RI360P0-QR24M0-CNX4-2H1150
  • 1590914
Manufactured
Availability
  • Usually ships in 1-2 weeks
Product Specs

Features

  • Compact
  • rugged housing
  • Many mounting possibilities
  • Status displayed via LED
  • Positioning element and aluminium ring not incl.
  • CANopen interface
  • Baud rate 10 kbps up to 1 Mbps; Factory setting: 125 kbps
  • Node address 1 to 127; Factory setting 3
  • Terminating resistor switched in via CANopen device access
  • Immune to electromagnetic interference
  • 10 … 30 VDC
  • M12 x 1 male
  • 5-pin
  • CAN in
  • CAN out
  • Acc. to CiA DS-301
  • CiA 305
  • CiA 406
Contactless Encoder, CANopen, Premium Line, Compact, rugged housing, Many mounting possibilities, Status displayed via LED, Positioning element and aluminium ring not incl., , CANopen interface, Baud rate 10 kbps up to 1 Mbps; Factory setting: 125 kbps, Node address 1 to 127; Factory setting 3, Terminating resistor switched in via CANopen device access, Immune to electromagnetic interference, , 10 … 30 VDC, M12 x 1 male, 5-pin, CAN in, CAN out, Acc. to CiA DS-301, CiA 305, CiA 406
