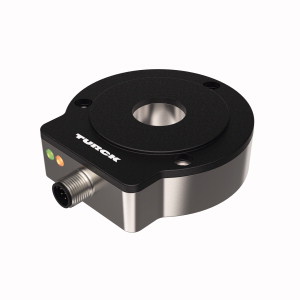

TURCK 1590912 / RI360P0-EQR24M0-INCRX2-H1181 Encoder Sensors

Contactless Encoder with Stainless Steel Housing, Incremental: 1 … 5000 ppr, Premium Line.

$711.50
Part Numbers
  • RI360P0-EQR24M0-INCRX2-H1181
  • 1590912
Manufactured
Availability
  • Usually ships in 1-2 weeks
Product Specs

Features

  • Compact
  • rugged housing
  • Active face
  • plastic PA12-GF30
  • Housing
  • stainless steel V4A (1.4404)
  • Status displayed via LED
  • Immune to electromagnetic interference
  • 1024 pulses per revolution (default)
  • 360
  • 512
  • 1000
  • 1024
  • 2048
  • 2500
  • 3600
  • 4096
  • parametr. via Easy-Teach
  • Free parametrization of the pulse number in the range from 1 to 5000 via PACT
  • ware
  • ™
  • Position of z-track set via Easy-Teach
  • Burst function
  • absolute angular position output incrementally per Easy-Teach pulse
  • 10…30 VDC
  • Male M12 x 1
  • 8-pin
  • Push-pull A
  • B
  • Z
  • A (inverse)
  • B (inverse)
Contactless Encoder with Stainless Steel Housing, Incremental: 1 … 5000 ppr, Premium Line, Resolution, incremental 1024 ppr, Compact, rugged housing, Active face, plastic PA12-GF30, Housing, stainless steel V4A (1.4404), Status displayed via LED, Immune to electromagnetic interference, 1024 pulses per revolution (default), 360, 512, 1000, 1024, 2048, 2500, 3600, 4096, parametr. via Easy-Teach, Free parametrization of the pulse number in the range from 1 to 5000 via PACT, ware, ™, Position of z-track set via Easy-Teach, Burst function, absolute angular position output incrementally per Easy-Teach pulse, 10…30 VDC, Male M12 x 1, 8-pin, Push-pull A, B, Z, A (inverse), B (inverse)
