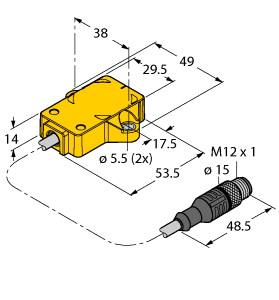

TURCK 1590871 / RI360P0-QR14-ELIU5X2-0.3-RS5/S1264 Encoder Sensors

Inductive Angle Sensor, With Analog Output, Premium Line.

$260.40
Part Numbers
  • RI360P0-QR14-ELIU5X2-0.3-RS5/S1264
  • 1590871
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Rectangular
  • plastic
  • Compact
  • rugged housing
  • Many mounting possibilities
  • Measuring range displayed via LED
  • Immune to electromagnetic interference
  • Resolution
  • 12-bit
  • Output signal returns to 0 V or rather 4 mA
  • provided the positioning element is outside the measuring range.
  • 15…30 VDC
  • Analog output
  • Programmable measuring range
  • 0…10 V and 4…20 mA
  • Cable with male connector
  • M12 × 1
Inductive Angle Sensor, With Analog Output, Premium Line, Cable length (L) 0.3 m, Rectangular, plastic, Compact, rugged housing, Many mounting possibilities, Measuring range displayed via LED, Immune to electromagnetic interference, Resolution, 12-bit, Output signal returns to 0 V or rather 4 mA, provided the positioning element is outside the measuring range., 15…30 VDC, Analog output, Programmable measuring range, 0…10 V and 4…20 mA, Cable with male connector, M12 × 1
