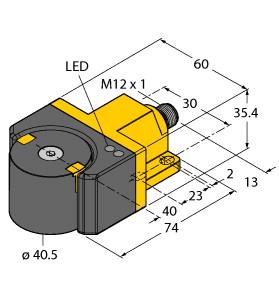

TURCK 1590866 / RI360P1-DSU35-ELIU5X2-H1151 Encoder Sensors

Inductive Angle Sensor, With Analog Output, Premium Line.

$443.80
Part Numbers
  • RI360P1-DSU35-ELIU5X2-H1151
  • 1590866
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Rectangular
  • housing DSU35
  • Plastic
  • PP-GF30-VO
  • Detecting angular positions of 0° to 360°
  • P1-Ri-DSU35 positioning element included in delivery
  • Measuring range displayed via LED
  • Programmable measuring range
  • Immune to electromagnetic interference
  • Resolution
  • 12-bit
  • 15…30 VDC
  • 0…10 V and 4…20 mA
  • Male M12 x 1
  • 5-pin
Inductive Angle Sensor, With Analog Output, Premium Line, Non-flush, Rectangular, housing DSU35, Plastic, PP-GF30-VO, Detecting angular positions of 0° to 360°, P1-Ri-DSU35 positioning element included in delivery, Measuring range displayed via LED, Programmable measuring range, Immune to electromagnetic interference, Resolution, 12-bit, 15…30 VDC, 0…10 V and 4…20 mA, Male M12 x 1, 5-pin
