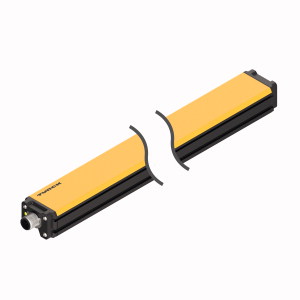

TURCK 1590205 / LI500P0-Q25LM0-HESG25X3-H1181 Linear Position Sensors

Inductive Linear Position Sensor.

$1,097.70
Part Numbers
  • LI500P0-Q25LM0-HESG25X3-H1181
  • 1590205
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Rectangular
  • aluminium / plastic
  • Versatile mounting possibilities
  • Measuring range displayed via LED
  • Immune to electromagnetic interference
  • Extremely short blind zones
  • Resolution 0.001 mm
  • 15…30 VDC
  • Male M12 x 1
  • 8-pin
  • SSI output
  • 25 bit
  • Gray-coded
  • synchronous
  • SSI clock rate: 62.5 kHz … 1 MHz
Inductive Linear Position Sensor, Measuring range 500 mm, Rectangular, aluminium / plastic, Versatile mounting possibilities, Measuring range displayed via LED, Immune to electromagnetic interference, Extremely short blind zones, Resolution 0.001 mm, 15…30 VDC, Male M12 x 1, 8-pin, SSI output, 25 bit, Gray-coded, synchronous, SSI clock rate: 62.5 kHz … 1 MHz
