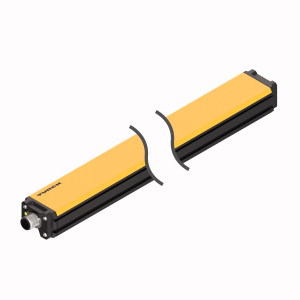

TURCK 1590062 / LI300P1-Q25LM1-LIU5X3-H1151 Linear Position Sensors

Inductive Linear Position Sensor.

$695.80
Part Numbers
  • LI300P1-Q25LM1-LIU5X3-H1151
  • 1590062
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Rectangular
  • aluminium / plastic
  • Versatile mounting possibilities
  • Positioning element P1-Li-Q25L
  • mounting aid M1-Q25L included in delivery
  • LED indicates measuring range
  • Immune to electromagnetic interference
  • Extremely short blind zones
  • Resolution
  • 12-bit
  • 4‐wire
  • 15…30 VDC
  • Analog output
  • Programmable measuring range
  • 0…10 V and 4…20 mA
  • M12 × 1 male
  • 5-pin
Inductive Linear Position Sensor, Measuring range 300 mm, Rectangular, aluminium / plastic, Versatile mounting possibilities, Positioning element P1-Li-Q25L, mounting aid M1-Q25L included in delivery, LED indicates measuring range, Immune to electromagnetic interference, Extremely short blind zones, Resolution, 12-bit, 4‐wire, 15…30 VDC, Analog output, Programmable measuring range, 0…10 V and 4…20 mA, M12 × 1 male, 5-pin
