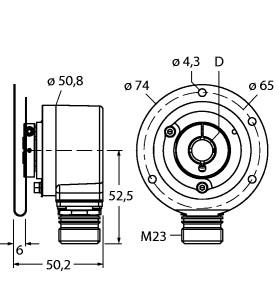

TURCK 1545782 / RI-12H10E1-2B3600-12M23 Encoder Sensors

Incremental Encoder, Industrial Line.

$450.00
Part Numbers
  • RI-12H10E1-2B3600-12M23
  • 1545782
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

  • Flange with stator coupling
  • Ø 65mm
  • Hollow shaft
  • Ø 10mm
  • Optical measuring principle
  • Shaft material
  • stainless steel
  • Protection class IP67 on housing and shaft side
  • ‐40…+85 °C
  • Max. 6000 rpm (continuous operation 3000 rpm)
  • 10…30 VDC
  • M23 male
  • 12-pin
  • Push-pull
  • with inverted signals
  • Pulse frequency max. 300 kHz
  • 3600 pulses per revolution
Incremental Encoder, Industrial Line, Resolution, incremental 3600 ppr, Flange with stator coupling, Ø 65mm, Hollow shaft, Ø 10mm, Optical measuring principle, Shaft material, stainless steel, , Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 10…30 VDC, M23 male, 12-pin, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 3600 pulses per revolution
