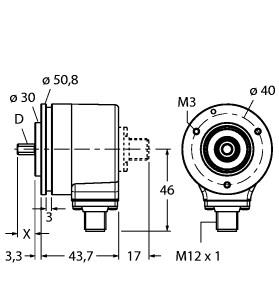

TURCK 1545772 / RI-10T10Z2-2K500-H1181 Encoder Sensors

Incremental Encoder, Industrial Line.

$450.00
Part Numbers
  • RI-10T10Z2-2K500-H1181
  • 1545772
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

  • Servo flange
  • Ø 50,8 mm
  • Solid shaft
  • Ø 10 mm × 20 mm
  • Optical measuring principle
  • Shaft
  • stainless steel
  • Protection class IP65 on shaft side
  • -40…+85 °C
  • Max. 12000 rpm (continuous operation 6000)
  • 5…30 VDC
  • Male connector
  • M12 x 1
  • 8-pole
  • Push-pull
  • with inverted signals
  • Pulse frequency max. 300 kHz
  • 500 pulses per revolution
Incremental Encoder, Industrial Line, Resolution, incremental 500 ppr, Servo flange, Ø 50,8 mm, Solid shaft, Ø 10 mm × 20 mm, Optical measuring principle, Shaft, stainless steel, Protection class IP65 on shaft side, -40…+85 °C, Max. 12000 rpm (continuous operation 6000), 5…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 500 pulses per revolution
