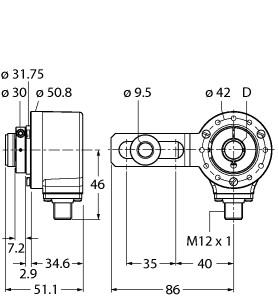

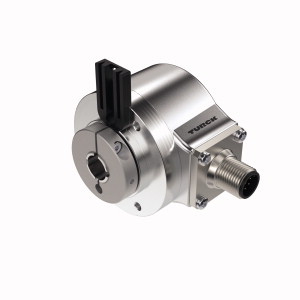

TURCK 1545746 / RI-12HA4S1-2B4-H1181 Encoder Sensors

Incremental Encoder, Industrial Line.

$450.00
Part Numbers
  • RI-12HA4S1-2B4-H1181
  • 1545746
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

  • Flange with tether arm for 40-75mm mounting diameters
  • Hollow shaft
  • Ø 5/8”
  • Optical measuring principle
  • Shaft material: stainless steel
  • Protection class IP67 on housing and shaft side
  • ‐40…+85 °C
  • Max. 6000 rpm (continuous operation 3000 rpm)
  • 10…30 VDC
  • Male connector
  • M12 x 1
  • 8-pole
  • Push-pull
  • with inverted signals
  • Pulse frequency max. 300 kHz
  • 4 pulses per revolution
Incremental Encoder, Industrial Line, Resolution, incremental 4 ppr, Flange with tether arm for 40-75mm mounting diameters, Hollow shaft, Ø 5/8", Optical measuring principle, Shaft material: stainless steel, , Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 10…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 4 pulses per revolution
