TURCK 1545663 / RI-10TA1C-2K5000-H1181 Encoder Sensors

Incremental Encoder, Industrial Line.

$450.00
Part Numbers
  • RI-10TA1C-2K5000-H1181
  • 1545663
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

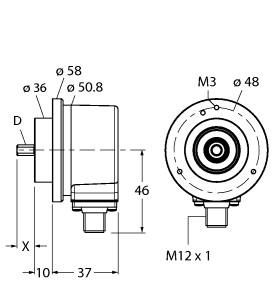

  • Clamping flange
  • Ø 58 mm
  • Solid shaft
  • Ø 3/8“ x 5/8”
  • Optical measuring principle
  • Shaft
  • stainless steel
  • Protection class IP65 on shaft side
  • -40…+85 °C
  • Max. 12000 rpm (continuous operation 6000)
  • 5…30 VDC
  • Male connector
  • M12 x 1
  • 8-pole
  • Push-pull
  • with inverted signals
  • Pulse frequency max. 300 kHz
  • 5000 pulses per revolution
Incremental Encoder, Industrial Line, Resolution, incremental 5000 ppr, Clamping flange, Ø 58 mm, Solid shaft, Ø 3/8" x 5/8", Optical measuring principle, Shaft, stainless steel, , Protection class IP65 on shaft side, -40…+85 °C, Max. 12000 rpm (continuous operation 6000), 5…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 5000 pulses per revolution
