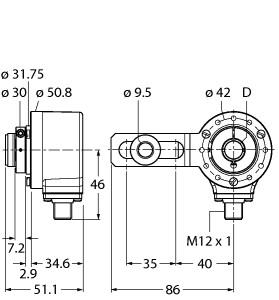

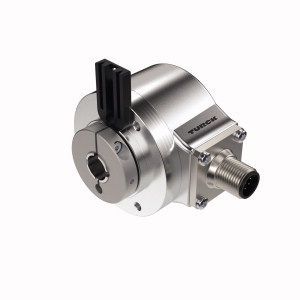

TURCK 1545641 / RI-12H12S1-2B256-H1181 Encoder Sensors

Incremental Encoder, Industrial Line.

$448.50
Part Numbers
  • RI-12H12S1-2B256-H1181
  • 1545641
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

  • Flange with tether arm for 40-75mm mounting diameters
  • Hollow shaft
  • Ø 12 mm
  • Optical measuring principle
  • Shaft material: stainless steel
  • IP67 rated on shaft side
  • ‐30 …+85 °C (with flexible use of cable -20 …+85 °C)
  • Max. 6000 rpm (continuous operation 3000 rpm)
  • 10…30 VDC
  • Male connector
  • M12 x 1
  • 8-pole
  • Push-pull
  • with inverted signals
  • Pulse frequency max. 300 kHz
  • 256 pulses per revolution
Incremental Encoder, Industrial Line, Resolution, incremental 256 ppr, Flange with tether arm for 40-75mm mounting diameters, Hollow shaft, Ø 12 mm, Optical measuring principle, Shaft material: stainless steel, IP67 rated on shaft side, ‐30 …+85 °C (with flexible use of cable -20 …+85 °C), Max. 6000 rpm (continuous operation 3000 rpm), 10…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 256 pulses per revolution
