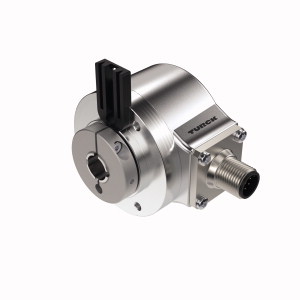

TURCK 1545516 / RI-12I15S1-2K1024-H1181 Encoder Sensors

Incremental Encoder, Industrial Line.

$450.00
Part Numbers
  • RI-12I15S1-2K1024-H1181
  • 1545516
Manufactured
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • Flange with tether arm for 40-75mm mounting diameters
  • Hollow shaft
  • Ø 15 mm
  • Optical measuring principle
  • Shaft material: stainless steel
  • Protection class IP65 on shaft side
  • -40…+85 °C
  • Max. 12000 rpm (continuous operation 6000)
  • 5…30 VDC
  • Male connector
  • M12 x 1
  • 8-pole
  • Push-pull
  • with inverted signals
  • Pulse frequency max. 300 kHz
  • 1024 pulses per revolution
Incremental Encoder, Industrial Line, Resolution, incremental 1024 ppr, Flange with tether arm for 40-75mm mounting diameters, Hollow shaft, Ø 15 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP65 on shaft side, -40…+85 °C, Max. 12000 rpm (continuous operation 6000), 5…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 1024 pulses per revolution
