TURCK 1545430 / RI-10TA1Z2-4A2048-C1M Encoder Sensors

Incremental Encoder, Industrial Line.

$450.00
Part Numbers
  • RI-10TA1Z2-4A2048-C1M
  • 1545430
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

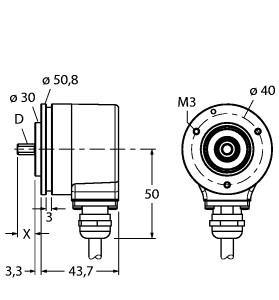

  • Servo flange
  • Ø 50.8mm
  • Solid shaft
  • Ø 3/8” x 5/8”
  • Optical measuring principle
  • Shaft material
  • stainless steel
  • Protection class IP65 on shaft side
  • -40…+85 °C
  • Max. 12000 rpm (continuous operation 6000)
  • 5 VDC
  • Cable connection
  • 8-pole
  • RS422 with inverted signals
  • Pulse frequency max. 300 kHz
  • 2048 pulses per revolution
Incremental Encoder, Industrial Line, Resolution, incremental 2048 ppr, Servo flange, Ø 50.8mm, Solid shaft, Ø 3/8" x 5/8", Optical measuring principle, Shaft material, stainless steel, , Protection class IP65 on shaft side, -40…+85 °C, Max. 12000 rpm (continuous operation 6000), 5 VDC, Cable connection, 8-pole, RS422 with inverted signals, Pulse frequency max. 300 kHz, 2048 pulses per revolution
