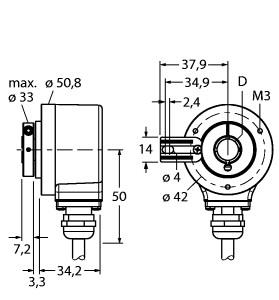

TURCK 1545404 / RI-12HA4T-2K2048-C1M Rotary Position Sensors

Incremental Encoder, Industrial Line.

$450.00
Part Numbers
  • RI-12HA4T-2K2048-C1M
  • 1545404
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Flange with torque stop
  • Ø 50.8mm
  • Hollow shaft
  • Ø 5/8”
  • Optical measuring principle
  • Shaft material
  • stainless steel
  • Protection class IP67 on housing and shaft side
  • ‐40…+85 °C
  • Max. 6000 rpm (continuous operation 3000 rpm)
  • 5…30 VDC
  • Cable connection
  • 8-pole
  • Push-pull
  • with inverted signals
  • Pulse frequency max. 300 kHz
  • 2048 pulses per revolution
Incremental Encoder, Industrial Line, Operating voltage 5…30 VDC, Resolution incremental 2048 ppr, Flange with torque stop, Ø 50.8mm, Hollow shaft, Ø 5/8", Optical measuring principle, Shaft material, stainless steel, , Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 5…30 VDC, Cable connection, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 2048 pulses per revolution
