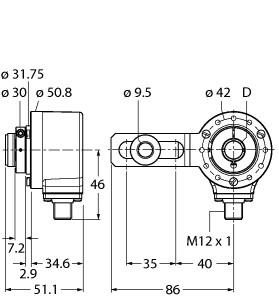

TURCK 1545366 / RI-12H15S1-4B5000-H1181 Rotary Position Sensors

Incremental Encoder, Industrial Line.

$450.00
Part Numbers
  • RI-12H15S1-4B5000-H1181
  • 1545366
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Flange with tether arm for 40-75mm mounting diameters
  • Hollow shaft
  • Ø 15 mm
  • Optical measuring principle
  • Shaft material: stainless steel
  • Protection class IP67 on housing and shaft side
  • ‐40…+85 °C
  • Max. 6000 rpm (continuous operation 3000 rpm)
  • 5…30 VDC
  • Male connector
  • M12 x 1
  • 8-pole
  • RS422 with inverted signals
  • Pulse frequency max. 300 kHz
  • 5000 pulses per revolution
Incremental Encoder, Industrial Line, Operating voltage 5…30 VDC, Resolution incremental 5000 ppr, Flange with tether arm for 40-75mm mounting diameters, Hollow shaft, Ø 15 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 5…30 VDC, Male connector, M12 x 1, 8-pole, RS422 with inverted signals, Pulse frequency max. 300 kHz, 5000 pulses per revolution
