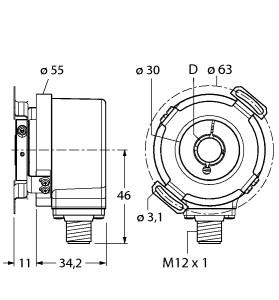

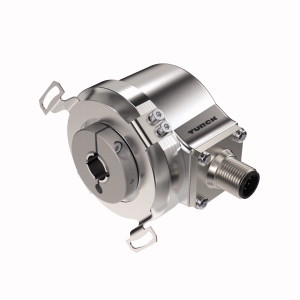

TURCK 1545301 / RI-12I14E-4B4096-H1181 Encoder Sensors

Incremental Encoder, Industrial Line.

$448.50
Part Numbers
  • RI-12I14E-4B4096-H1181
  • 1545301
Manufactured
Availability
  • Usually ships in 2-3 weeks
Product Specs

Features

  • Flange with slotted flex mount
  • Ø 63 mm
  • Hollow shaft
  • Ø 14 mm
  • Optical measuring principle
  • Shaft material: stainless steel
  • Protection class IP65 on shaft side
  • -40…+85 °C
  • Max. 6000 rpm
  • 5…30 VDC
  • Male connector
  • M12 x 1
  • 8-pole
  • RS422 with inverted signals
  • Pulse frequency max. 300 kHz
  • 4096 pulses per revolution
Incremental Encoder, Industrial Line, Resolution, incremental 4096 ppr, Flange with slotted flex mount, Ø 63 mm, Hollow shaft, Ø 14 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP65 on shaft side, -40…+85 °C, Max. 6000 rpm, 5…30 VDC, Male connector, M12 x 1, 8-pole, RS422 with inverted signals, Pulse frequency max. 300 kHz, 4096 pulses per revolution
