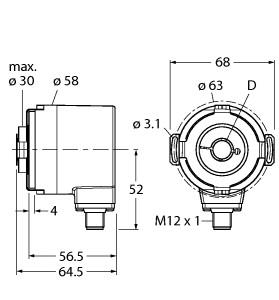

TURCK 1545242 / RM-35H12E-3C25B-H1181 Rotary Position Sensors

Absolute Rotary Encoder - Multiturn, Industrial Line.

$1,601.50
Part Numbers
  • RM-35H12E-3C25B-H1181
  • 1545242
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Flange with stator coupling
  • Ø 58 mm
  • Hollow shaft
  • Ø 12 mm
  • Optical measuring principle
  • Shaft material: stainless steel
  • Protection class IP67 on shaft side
  • -40…+70 °C
  • Max. 4000 rpm
  • 10…30 VDC
  • SSI
  • gray
  • M12 connector
  • 8-pin
  • Singleturn
  • 13-bit resolution
  • Multiturn
  • 12-bit resolution
Absolute Rotary Encoder - Multiturn, Industrial Line, Operating voltage 10…30 VDC, Flange with stator coupling, Ø 58 mm, Hollow shaft, Ø 12 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP67 on shaft side, -40…+70 °C, Max. 4000 rpm, 10…30 VDC, SSI, gray, M12 connector, 8-pin, Singleturn, 13-bit resolution, Multiturn, 12-bit resolution
