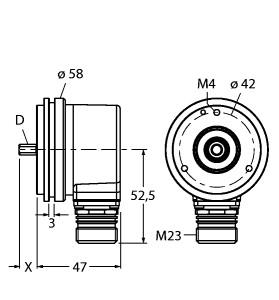

TURCK 1544841 / RI-10S6S-2B1024-12M23 Encoder Sensors

Incremental Encoder, Industrial Line.

$448.50
Part Numbers
  • RI-10S6S-2B1024-12M23
  • 1544841
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

Features

  • Servo flange
  • Ø 58 mm
  • Solid shaft
  • Ø 6mm x 10mm
  • Optical measuring principle
  • Shaft material
  • stainless steel
  • Protection class IP67 on housing and shaft side
  • ‐40…+85 °C
  • Max. 6000 rpm (continuous operation 3000 rpm)
  • 10…30 VDC
  • M23 male
  • 12-pin
  • Push-pull
  • with inverted signals
  • Pulse frequency max. 300 kHz
  • 1024 pulses per revolution
Incremental Encoder, Industrial Line, Operating voltage 10…30 VDC, Resolution incremental 1024 ppr, Servo flange, Ø 58 mm, Solid shaft, Ø 6mm x 10mm, Optical measuring principle, Shaft material, stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 10…30 VDC, M23 male, 12-pin, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 1024 pulses per revolution
