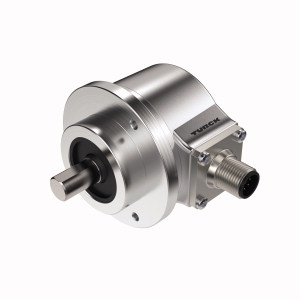

TURCK 1544757 / RI-10S10C-2B1024-H1181 Encoder Sensors

Incremental Encoder, Industrial Line.

$448.50
Part Numbers
  • RI-10S10C-2B1024-H1181
  • 1544757
Manufactured
Availability
  • Usually ships in 7-10 weeks
Product Specs

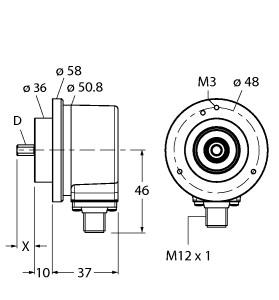

Features

  • Clamping flange
  • Ø 58 mm
  • Solid shaft
  • Ø 10 mm × 20 mm
  • Optical measuring principle
  • Shaft material: stainless steel
  • Protection class IP67 on housing and shaft side
  • ‐40…+85 °C
  • Max. 6000 rpm (continuous operation 3000 rpm)
  • 10…30 VDC
  • Male connector
  • M12 x 1
  • 8-pole
  • Push-pull
  • with inverted signals
  • Pulse frequency max. 300 kHz
  • 1024 pulses per revolution
Incremental Encoder, Industrial Line, Resolution, incremental 1024 ppr, Clamping flange, Ø 58 mm, Solid shaft, Ø 10 mm × 20 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 10…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 1024 pulses per revolution
