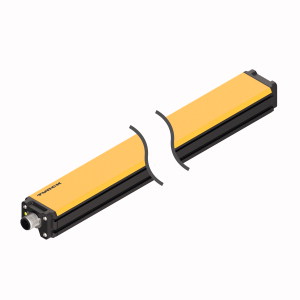

TURCK 1536631 / WIM125-Q25L-LIU5X2-H1141 Linear Position Sensors

Magnetically Actuated Linear Position Sensor.

$431.90
Part Numbers
  • WIM125-Q25L-LIU5X2-H1141
  • 1536631
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Rectangular
  • aluminium / plastic
  • Many mounting possibilities
  • Measuring range indication via LED
  • Immune to external magnetic fields
  • Extremely short blind zones
  • 4-wire
  • 15…30 VDC
  • Analog output
  • 0…10 V and 4…20 mA
  • Male connector
  • M12 x 1
Magnetically Actuated Linear Position Sensor, Measuring range 125 mm, Rectangular, aluminium / plastic, Many mounting possibilities, Measuring range indication via LED, Immune to external magnetic fields, Extremely short blind zones, 4-wire, 15…30 VDC, Analog output, 0…10 V and 4…20 mA, Male connector, M12 x 1
