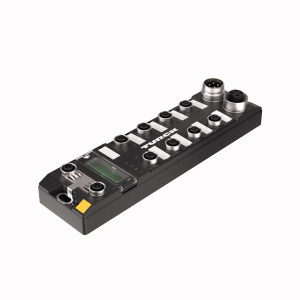

TURCK TBEN-L4-8IOLA Block-IO
Compact Multiprotocol I/O Module for Ethernet, 8 IO-Link Master Channels, 16 Universal Digital PNP Channels, Channel Diagnostics.
Overview
Features
- PROFINET device
- EtherNet/IP device or Modbus TCP slave
- Integrated Ethernet switch
- Supports 10 Mbps/100 Mbps
- 2 × M12
- 4-pin
- D-coded
- Ethernet fieldbus connection
- PROFINET S2 system redundancy
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65
- IP67
- IP69K
- 4-pin 7/8″ male connector for power supply
- ATEX Zone 2/22
- 5-pin M12 slots for IO-Link master
- IO-Link master port class A
- IO-Link protocol 1.1
- Programmable ARGEE
Description
Compact Multiprotocol I/O Module for Ethernet, 8 IO-Link Master Channels, 16 Universal Digital PNP Channels, Channel Diagnostics, PROFINET device, EtherNet/IP device or Modbus TCP slave, Integrated Ethernet switch, Supports 10 Mbps/100 Mbps, 2 × M12, 4-pin, D-coded, Ethernet fieldbus connection, PROFINET S2 system redundancy, Glass fiber reinforced housing, Shock and vibration tested, Fully potted module electronics, Protection classes IP65, IP67, IP69K, 4-pin 7/8″ male connector for power supply, ATEX Zone 2/22, 5-pin M12 slots for IO-Link master, IO-Link master port class A, IO-Link protocol 1.1, Programmable ARGEE
