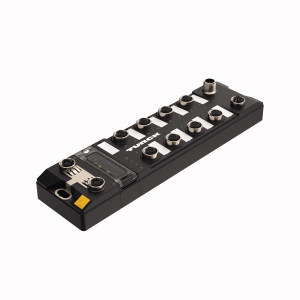

TURCK TBEN-LL-16DXP Block-IO

Compact multiprotocol I/O module for Ethernet, 16 Universal Digital Channels, Configurable as PNP Inputs or 2 A Outputs.

$789.90
Part Numbers
  • TBEN-LL-16DXP
  • 100004252
Manufactured
Availability
  • Usually ships in 0-7 business days
Product Specs

Features

  • PROFINET device
  • EtherNet/IP device or Modbus TCP slave
  • Integrated Ethernet switch
  • Supports 10 Mbps/100 Mbps
  • 2 × M12
  • 4-pin
  • D-coded
  • Ethernet fieldbus connection
  • PROFINET S2 system redundancy
  • Glass fiber reinforced housing
  • Shock and vibration tested
  • Fully potted module electronics
  • Protection classes IP65
  • IP67
  • IP69K
  • M12
  • 5-pin
  • L-coded male connector for power supply
  • Galvanically isolated voltage groups support passive safety
  • ATEX Zone 2/22
  • Input diagnostics per port
  • Max. 2 A per output
  • Output diagnostics per channel
  • Two freely selectable digital channels per port
  • Programmable ARGEE
Compact multiprotocol I/O module for Ethernet, 16 Universal Digital Channels, Configurable as PNP Inputs or 2 A Outputs, , PROFINET device, EtherNet/IP device or Modbus TCP slave, Integrated Ethernet switch, Supports 10 Mbps/100 Mbps, 2 × M12, 4-pin, D-coded, Ethernet fieldbus connection, PROFINET S2 system redundancy, Glass fiber reinforced housing, Shock and vibration tested, Fully potted module electronics, Protection classes IP65, IP67, IP69K, M12, 5-pin, L-coded male connector for power supply, Galvanically isolated voltage groups support passive safety, ATEX Zone 2/22, Input diagnostics per port, Max. 2 A per output, Output diagnostics per channel, Two freely selectable digital channels per port, Programmable ARGEE
